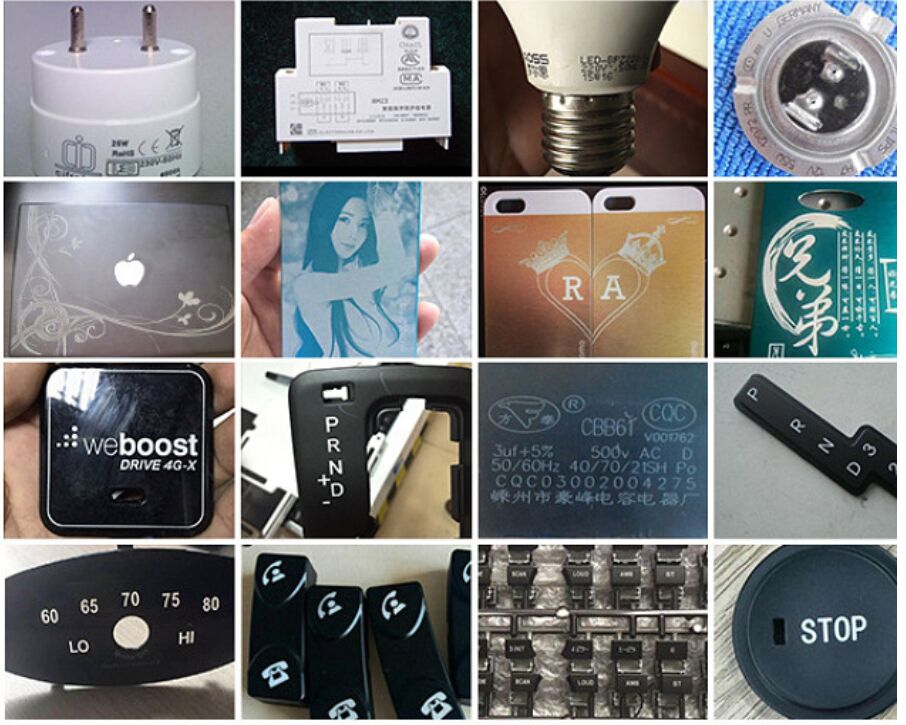

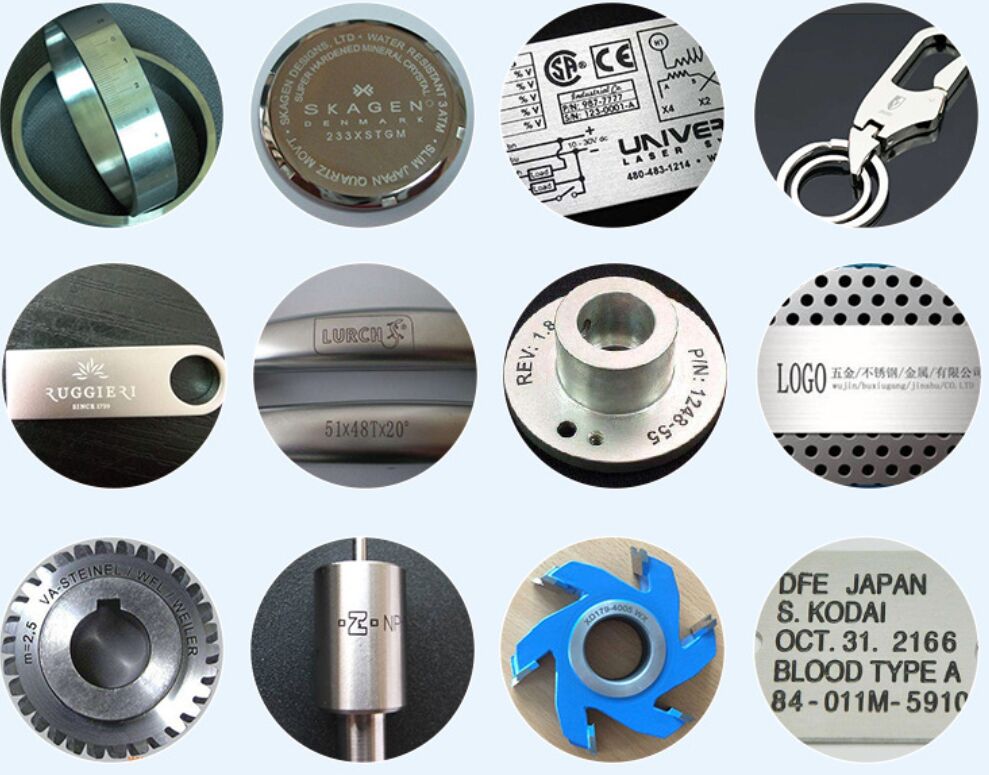

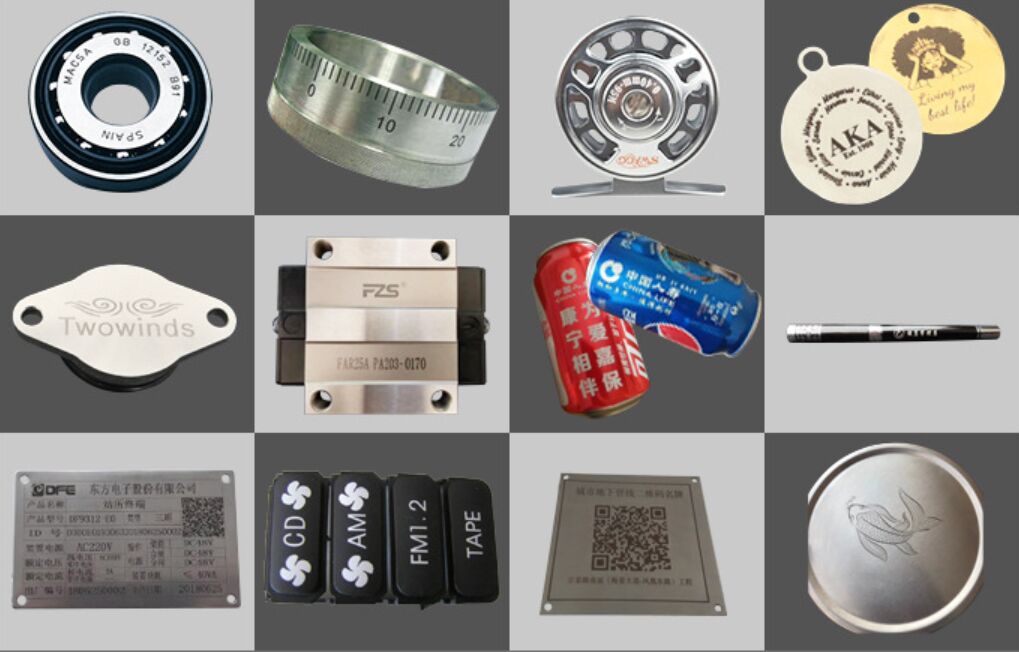

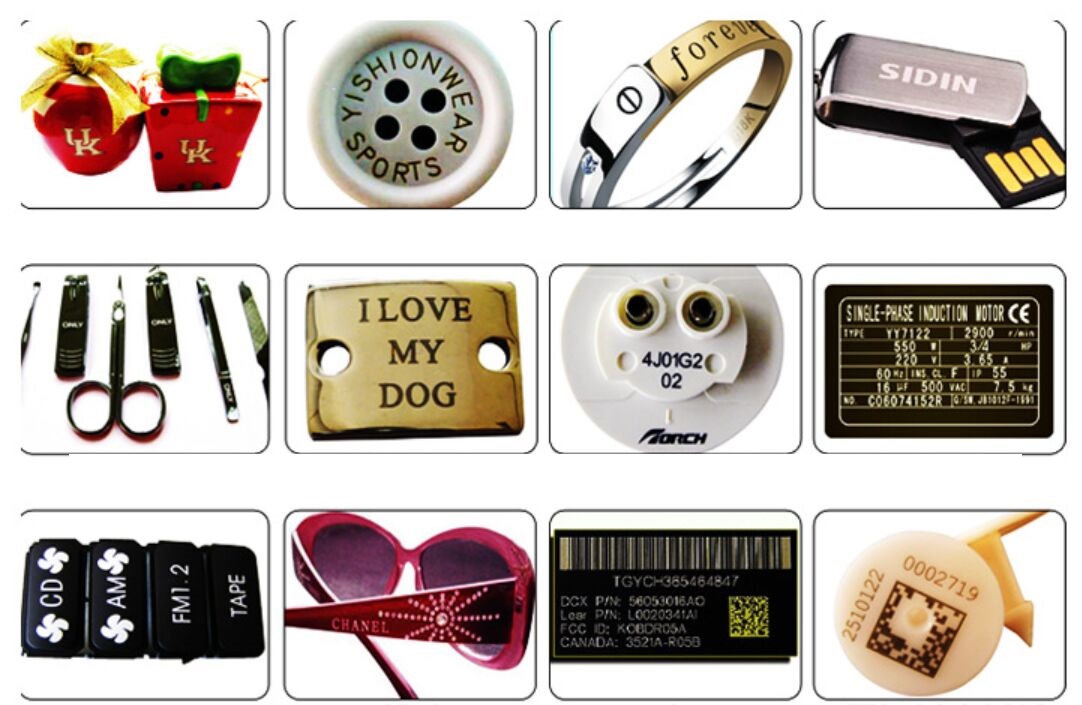

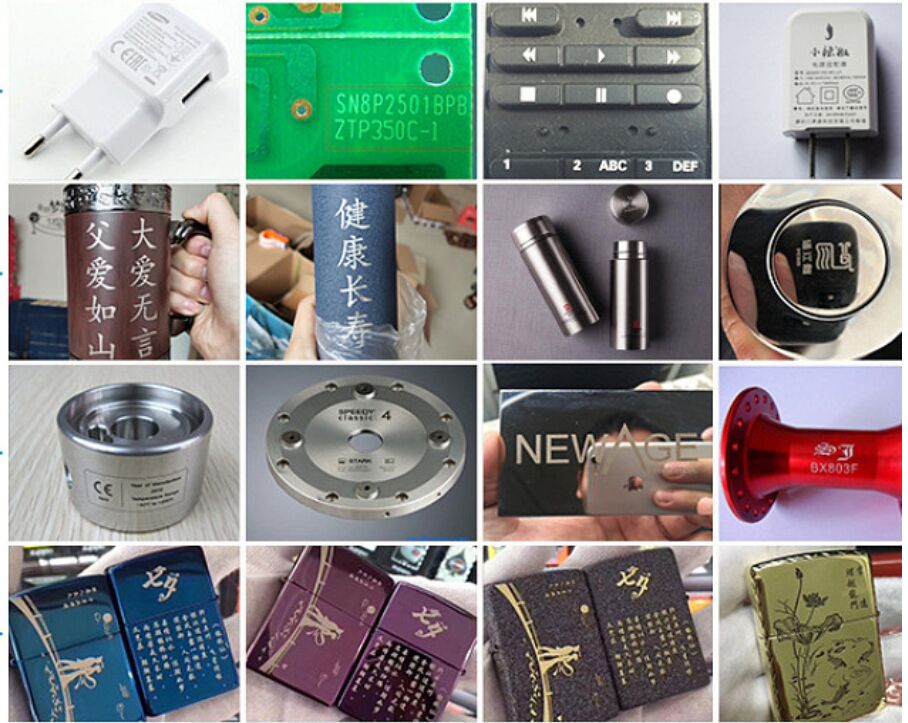

Applicable industry: Metal、alloy 、oxide、ABS、epoxy resin、printing ink,etc.
which are widely applying for electronics,jewelry,automobiles,
communication products,plastic buttons,IC,etc.

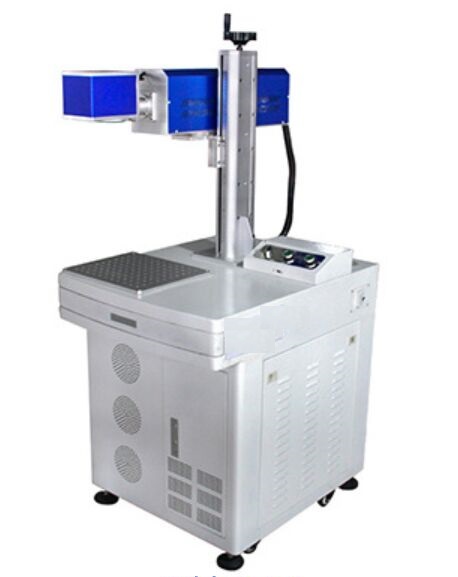

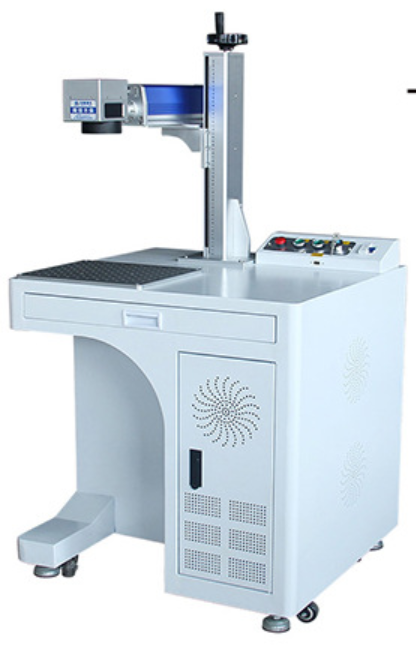

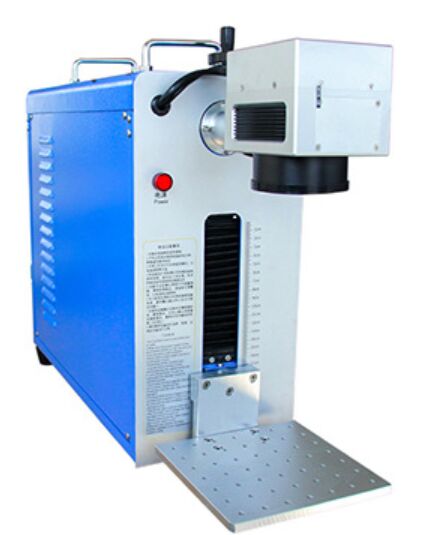

Different models: table type, portable type, etc. are available
Parameters:
|
Laser type |
IPG / Raycus/Max（Optional） |
|
Laser power |
20W/30W /50W(optional) |
|
Supports graphical format |
PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF |
|
Beam quality |
m2 <2 |
|
Power stability |
(8h) <± 1% rms |
|
Pulse repetition frequency |
1-20KHz |
|
Power consumed |
<800W |
|
Minimum line width |
50μm |
|
Minimum character |
0.3mm |
|
Laser Wavelength |
1064nm |
|
Galvanometer Size |
110 * 110mm (optional) |
|
Cooling way |
Air cooling |
|
Operating voltage |
110/220V ± 10% /,50/60HZ |
|
Ambient operating temperature |
15 ° C - 35 ° C |
|
Weight |
60KG |
|
Dimensions |
760*210*570 (mm)/600*800*1350 |
|
Packing |
plywood wooden packaging |
