Model |
1311 |
1411 |
1614 |
|
Max Laminating Size |
1300mm*1100mm |
1450mm*1100mm |
1600mm*1400mm |
|
Min Laminating Size |
350mm*350mm |
350mm*350mm |
450mm*450mm |
|
Economical Speed |
0－9000 sheets/h |
0－9000 sheets/h |
0－9000 sheets/h |
|
Laminating Precision |
≦+/- 1.5mm |
≦+/- 1.5mm |
≦+/- 1.5mm |
|
Total Power |
12 kw |
12 kw |
13 kw |
|
Machine Length |
12.5m |
12.5m |
15m |
|
Machine Weight |
6.8 tons |
7.2 tons |
8.0 tons |

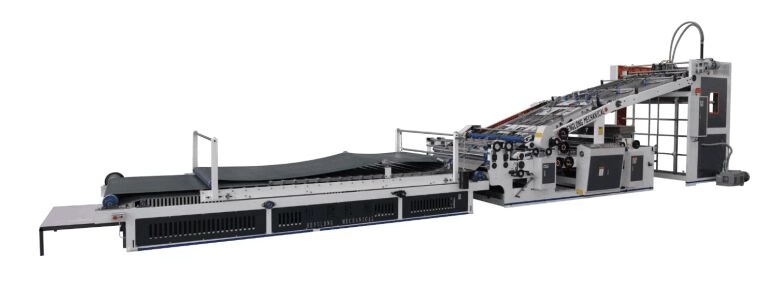

Automatic Flute Laminator is suitable for A, B , C, D, E, F flute . It can do 3 layer, 5 layer board to sheet laminating or thick board to board laminating . The surface paper need 200-600 GSM . With top paper advance and alignment function .
Automatic Flute Laminator Adopts back pusher , back positioning feeding, equipped with spring side lay and bottom suction system , to make our machine suitable for all kinds of paper , and keep the good characteristics of easy operation and convenient maintain .
