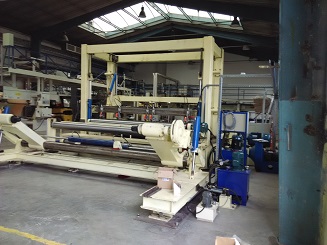

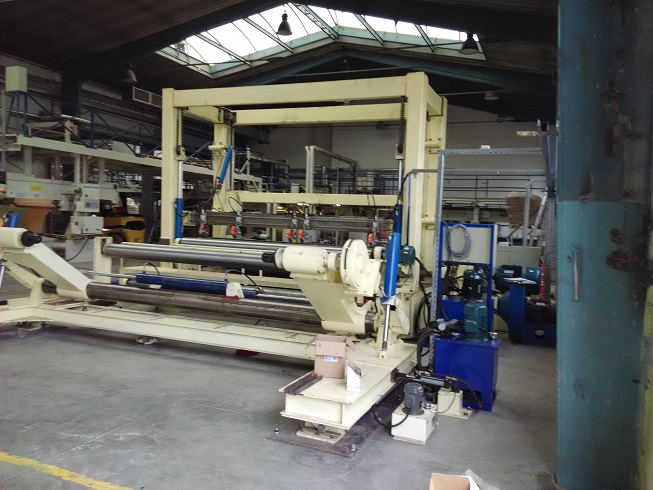

When you face the paper out direction, when the drive part on the right side, the machine is right hand machine, otherwise, it should be left hand machine, customer can choose the needed direction machine.
Technical data:
Jumbo paper: all kinds of cardboard paper and film paper with weight 40-500g/㎡, not suitable for single face corrugated paperboard.
Net paper width:2500mm (slit width 800-2500mm)
Paper leading mode：Down leading

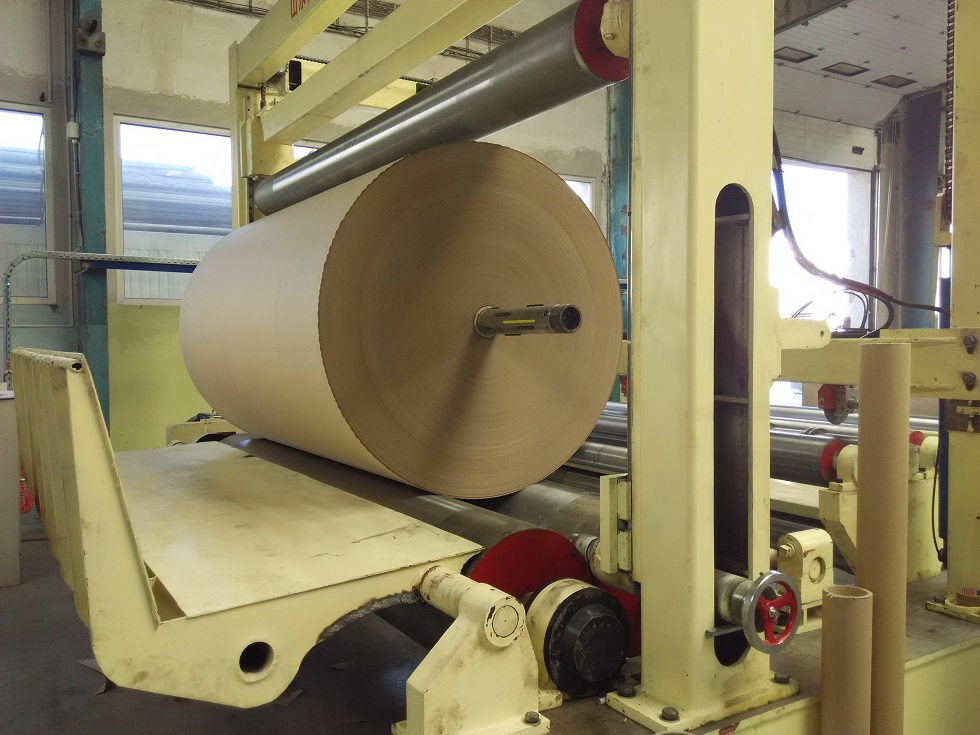

Jumbo paper roll max. diameter: 1670mm

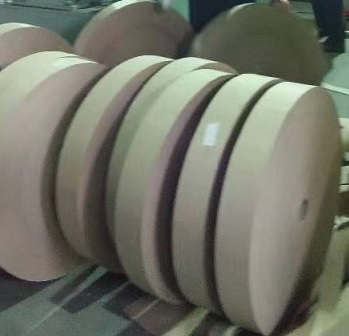

Finished paper roll max. diameter:1500mm
Design speed:600m/min
Working speed:400-500m/min
Lead paper speed: 20m/min
Front lower roll: φ420mm×2650mm（thickness 25）
Back lower roll: φ420mm×2650mm（thickness 25）

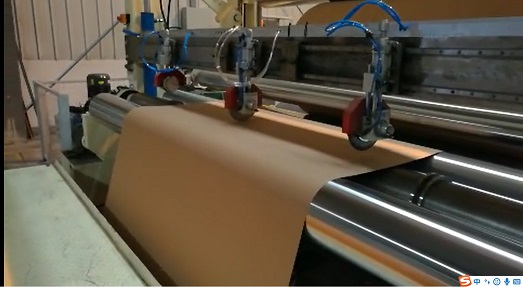

Lower slitter blade:：φ200×φ170×40 4pcs 9SiCr
Upper slitter blade:：φ190×φ90×2 4pcs 9SiCr
Core diameter of the finished roll：76mm &152mm
