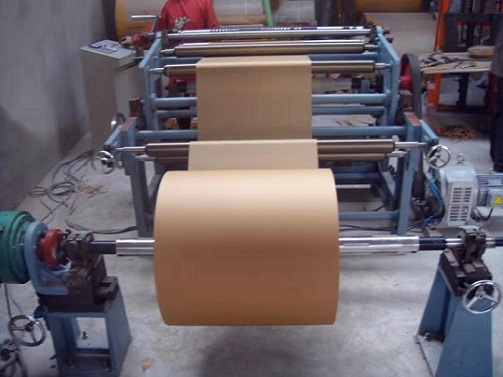

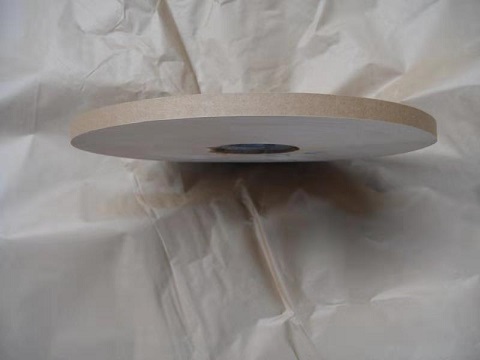

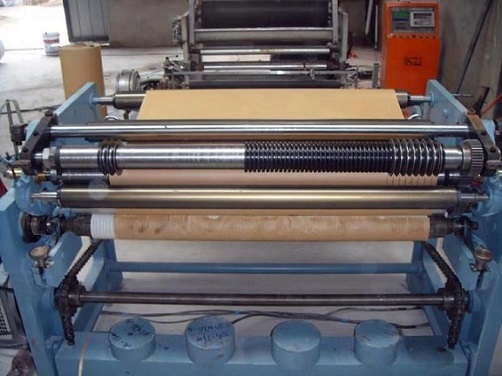

This rewinder  slitter  is used to slit the wide kraft to slim ones, and roll them into needed lengths.This machine can roll in big diameter

Main technical parameter:

1.  Max. Width of the original paper roll:1300mm

2. Max. Diameter of original paper roll：φ1200mm,

3. Max. Diameter of the finished paper roll:Φ700mm;

4. Min.width of finished paper roll: 80mm

5. Diameter of the core:φ76 mm

6. Designing speed：200m/min

7. Upper blade:φ114mm*φ45mm*1mm

8. Lower blade:φ108mm*φ80mm*10mm

9. Blades number: 16pairs

10. Motor: Y160L--4    7.5KW

11. With length meter:0-9999

12.  Automatic photoelectric correction equipped for the unloading stand

13. Oversize: L2372mm*W:3188mm*H1540mm

14.    Magnetic powder automatic tension control:400N
